High Efficiency Vertical Slewing Drive for Solar Tracking Systems
Vertical Slewing Drive Description
Solar tracking slewing drives play a vital role in improving the performance and efficiency of solar power plants. By automatically adjusting the position of solar panels or mirrors to face the sun, these drives enable the panels to capture the maximum amount of sunlight throughout the day. This dynamic tracking capability significantly enhances the energy output of solar installations, leading to increased electricity generation and improved overall system efficiency.
VE Model Performance Parameters
| VE Model Performance Parameters |
| Model | Rated Output Torque (N.m) | Holding Torque (kN.m) | Tilting Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision (Degree) | IP | Working Tep(℃) | Self-locking | Weight(kg) |
| 3" | 806 | 9 | 5 | 22 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 12kg |
| 5" | 962 | 30 | 6 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 18kg |
| 7" | 7344 | 60 | 10 | 34 | 58 | 51:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 32kg |
| 8" | 8000 | 70 | 14 | 50 | 80 | 50:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 28kg |
| 9" | 8784 | 80 | 16 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 52kg |
| 12" | 11232 | 100 | 25 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 65kg |
| 14" | 12240 | 120 | 48 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 88 kg |
| 17" | 14688 | 136 | 67 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 135 kg |
| 21" | 18000 | 140 | 89 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 192 kg |
| 25" | 21600 | 150 | 112 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 251 kg |
Applications
Solar Tracking Systems: Slewing drives are extensively used in solar tracking systems, which aim to maximize solar energy capture by orienting solar panels or mirrors toward the sun. The slewing drive enables precise and continuous tracking of the sun's movement, optimizing energy output.
Construction and Heavy Equipment: Slewing drives are utilized in construction machinery like cranes, excavators, and drilling rigs. They facilitate the rotation of the equipment, allowing for efficient positioning and movement.
Wind Turbines: Slewing drives play a crucial role in the yaw and pitch control systems of wind turbines. They enable the adjustment of the turbine's orientation to optimize wind capture and ensure the rotor blades are properly aligned with the wind direction.
Industrial Equipment: Slewing drives are employed in various industrial applications, such as conveyor systems, material handling equipment, and rotating platforms. They enable smooth and controlled rotation, enhancing productivity and operational efficiency.
Product Tags:
|
|

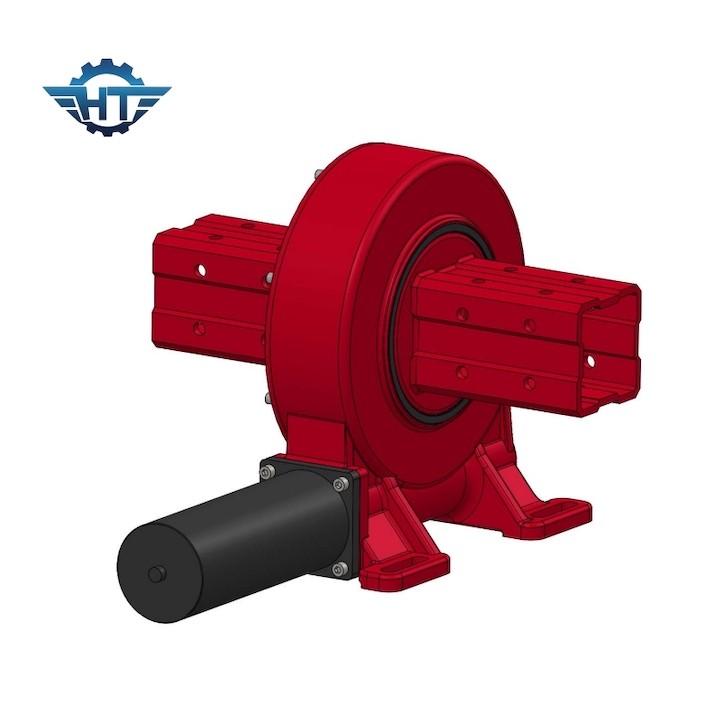

High Efficiency Vertical Slewing Drive For Solar Tracking Systems Images
|
