42CrMo & 50Mn QT450 Worm Gear Slew Drive SE21, 271000Nm Tilting Torque

Product Categories

Changzhou Hangtuo Mechanical Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 42CrMo amp 50Mn QT450 Worm Gear Slew Drive SE21 271000Nm Tilting Torque
Brand: HangTuo
Price: 280 USD

Brand Name : HangTuo

Model Number : SE21"

Certification : CE, ISO9001

Place of Origin : Changzhou, China

MOQ : 1 piece

Price : USD 280~504 / pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Product Name : Worm Gear Slew Drive

Axial Load Capacity : Up to 1600kN

Tilting Moment Torque (MAX.) Tilting Moment Torque (MAX.) : 203400 N.m

Color : Black

Gear Ratio : 125:1

Input Shaft : Solid

Circle Diameter : 520 mm

Contact Now

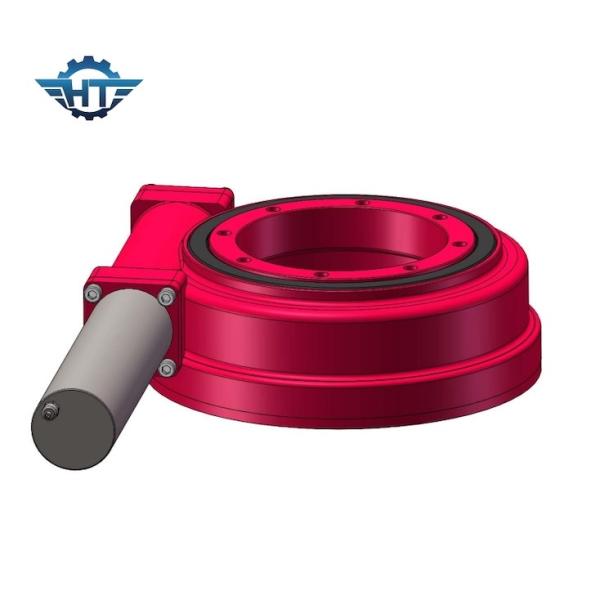

42CrMo & 50Mn QT450 Worm Gear Slew Drive SE21, 271000Nm Tilting Torque

Worm Gear Big Slew Drive Description

Material we can work on : 42CrMo, 50Mn, QT450

Processing of gear: forging, machining, hobbing, milling, shaping , shaving, grinding, heat treatment.

Heat Treatment: Nitriding.

SE21 Slew Drive Techical Specifications

Model Number	SE21
Brand Name	Hangtuo
Gear Ratio	150:1
Output Torque (Nm)	21450
Tilting Torque (Nm)	271000
Holding Torque (Nm)	65000
Weight (kgs)	145
Working Temperature (℃)	-30～+120
Place Of Origin	Changshu, China (Mainland)
Inspect	Full inspection
Processing	Forging/machining/coating/assembly
Service	24 hours online

Additional Information

Min. Order Quantity	5 units, sample order available
Port	China seaport ningbo/shanghai
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time	Lead time 20-40 days
Packaging Details	Wooden case free from fumigation
