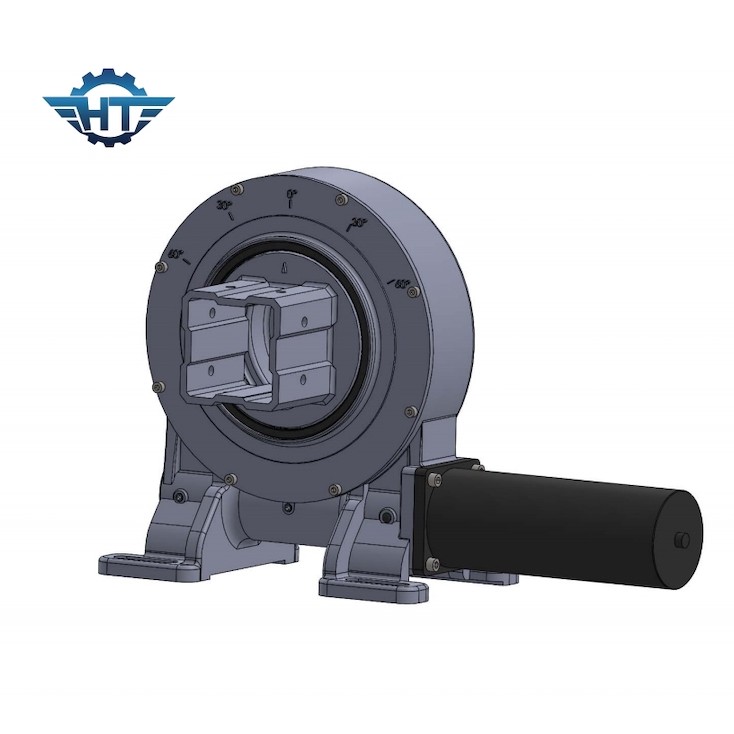

VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

Name: VE9 Solar Tracker Drive High Output Torque With 110110 MM Output Square Tube
Brand: HangTuo
Price: 280 USD

China VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube wholesale

Brand Name : HangTuo

Model Number : VE9"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 280~504 / pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : Cast Iron

Model : VE9"

Gear Ratio : 61:1

Noise Level : Low

Power : Electric

Product Name : Vertical Slewing Drive

Size : Small

Torque : High

Contact Now

VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

VE9 Solar Tracker Drive Description

The VE9 slew drive with 110×110 mm and 94×94 mm square output tube which is perfectly used flat single axis solar tracking system. It features high IP grade which could protect the drive from various environment conditions such as dust, water, sand etc. We are manufactured based on the standard which is required in the ISO9001 system. We also passed CE certifications. The slew drive has a long lifespan; it is designed for 30 years using life. We provide the whole lifespan technical support and 36 months to 60 months warranty based on different types of slew drives VE9 Solar Tracker Drive High Output Torque With 110×110 MM Output Square Tube

Technical Data

Model	VE9	Place of Origin	Changzhou,China
Brand	HANGTUO	Type	Enclosed
Material	42CrMo,50Mn	Output Torque	2250 N.m
Tilting Moment Torque	16 KN.m	Holding Torque	30.8 KN.m
Static Axial Rating	60 KN	Static Radial Rating	130 KN
Dynamic Axial Rating	30 KN	Dynamic Radial Rating	65 KN
Gear Ratio	61:1	Efficiency	40%

Advantages

1. High backholding torque to improve the solar tracking system's safety

2. Hard stop inside in case the mulfunctioning of the software control system

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function

6. Square tube output 110*110 mm
