25 Inch Powered Small Slew Drive With Hourglass Worm Technology For PV Mounting Tracking

Product Categories
Changzhou Hangtuo Mechanical Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

25 Inch Powered Small Slew Drive With Hourglass Worm Technology For PV Mounting Tracking

  • 1
  • 2

Brand Name : HangTuo

Model Number : SE1

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 100~1100/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Type : SE1 Slewing Drive

Material : 42CrMo or 50Mn

Warranty : 5~10 Years

Size : 3 inch to 25 inch

Application : PV Mounting Tracking System

Color : Customer Required

Structure : Single Axis

Protection : IP66

Contact Now

Slew Drive Powered With Hourglass Worm Technology For PV Mounting Tracking System

Hourglass Worm Slew Drive Description

The solar panels are operating at optimal parameters when they are at the perfect right angle to the sun. Unfortunately this is accomplished only if solar panels are rotated toward the sun. This is the purpose of this slewing drive solar tracker system.​

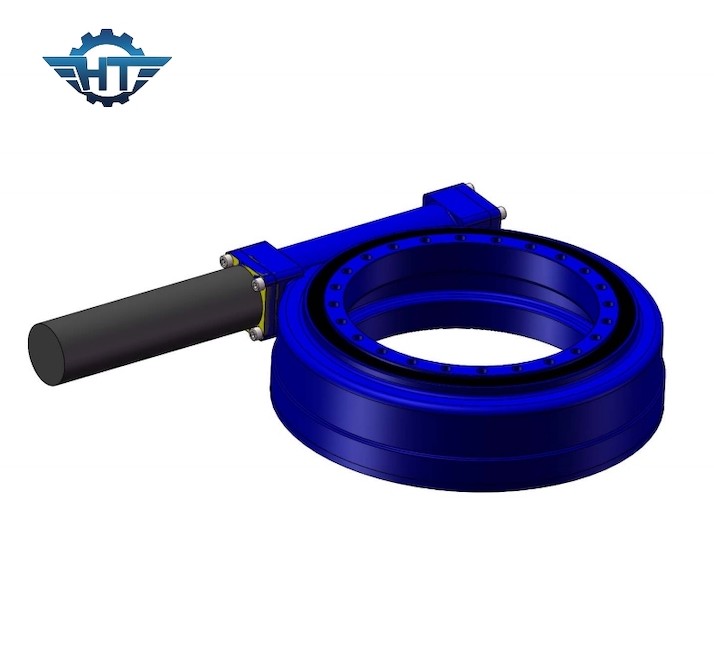

25 Inch Powered Small Slew Drive With Hourglass Worm Technology For PV Mounting Tracking

If you’ve installed solar panels at home to supplement your electricity usage or take your home completely off grid then you probably know that the panels will generate more electricity when they are aligned directly towards the sun. This is called solar tracker, one of the main part is slewing drive.

Performance Parameters of SE series

SE Model Performance Parameters
Model

Rated Output

Torque (N.m)

Tilting

Torque

(N.m)

Holding

Torque

(N.m)

Axial

Load

(kN)

Radial

Load

(kN)

 Ratio Efficiency

Precision

(degree)

 IP

Working Tep.

(℃)

Self-

locking

Weight

(kg)
1" 400 1000 1800 22 12 32:1 40% ≤0.1 66 -40～+120 Yes 6
3" 600 1500 3000 30 16 31:1 40% ≤0.1 66 -40～+120 Yes 8
5" 800 6000 9200 68 27 37:1 40% ≤0.1 66 -40～+120 Yes 12
7" 2000 13500 13200 132 58 57:1 40% ≤0.1 66 -40～+120 Yes 21
9" 4400 45000 30800 340 130 61:1 40% ≤0.1 66 -40～+120 Yes 49
12" 5800 54400 40560 480 190 78:1 40% ≤0.1 66 -40～+120 Yes 61
14" 6550 68000 54200 680 230 85:1 40% ≤0.1 66 -40～+120 Yes 63
17" 9400 135600 65040 980 390 102:1 40% ≤0.1 66 -40～+120 Yes 105
21" 16000 203400 81000 1600 640 125:1 40% ≤0.1 66 -40～+120 Yes 149
25" 21000 271160 89000 2400 950 150:1 40% ≤0.1 66 -40～+120 Yes 204
