Envelop Dual Axis Worm Gear Slew Drive With 12vdc Electrical Motor , Long Life

  • 1
  • 2

Brand Name : HangTuo

Model Number : SDE7"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 398~456/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Material : 50Mn, 42CrMo

Model : SDE7"

Gear ratio : 57:1

Rated Output Torque : 2000 Nm

Holding Torque : 13500 Nm

Tilting Torque : 13200 Nm

Efficiency : 40%

Standard Color : RAL 9006

Contact Now

IP66 Envelop Dual Axis Worm Drive With 12vdc Electrical Motor For Tower Concentrated Solar Power

Description

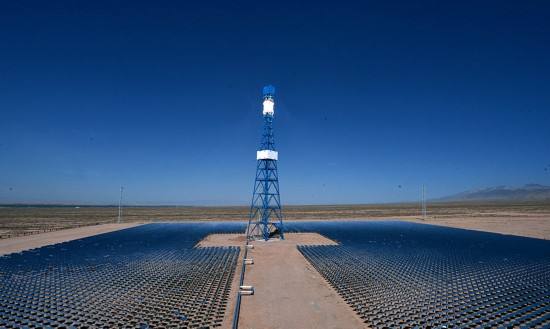

What is Tower CSP

The Heliostat concentrated solar power station, as one of the mainstream CSP technology routes, tower CSP has received much attention in recent years. Compared with the mature trough technology, tower photothermal power generation has higher thermal efficiency and concentration ratio, lower terrain requirements, but also has high risks, lack of technical maturity verification, and complex control systems.

At present, the common tower technology in the world is based on molten salt as a molten salt tower for transferring heat medium and a hydrothermal tower with water working medium as a heat transfer medium, and the molten salt tower has a large capacity. The advantages of large-scale energy storage are favored.

Slew Drives Applied In Tower CSP

Product Name SDE7 Slewing drive with 43Nm 24Vdc gear motors
Output Torque 980 N.m ; 723 ft.lbs
Max Output Torque 1938 N.m; 1429 ft.lbs
Tilting Moment Torque 7000 N.m; 5163 ft.lbs
Holding Torque 13200 N.m ; 9736 ft.lbs
Static Axial Rating 133.20 kN ; 29943 lb
Static Radial Rating 53 kN ; 11977 lb
Dynamic Axial Rating 31.90 kN ; 7171 lb
Dynamic Radial Rating 27.91 kN ; 6274 lb
Motor Alternatives 380V/220V AC Motor ; Stepper Motor ; Brushless Motor
Products Style Dual Axis; Single Axis; CPV/HCPV; Solar Dish; Parabolic; Solar Tower
Application Feature Solar Tracking System, Industrial Machiner

Slewing drives are perfect for situations requiring both load-holding and rotational torque from the same gearbox. Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.

Performance Table

Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 21kg
5" 37:1 650 5000 16 27 9200 40% ≤0.1 Yes 32kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 54kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 88kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 157 kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 214kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 315kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 481kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 682 kg

Features

1. High backholding torque to improve the solar tracking system's safety

2. Enveloping worm drive inside

3. Multi tooth contact to ensure high load

4. Self-locking function

Applicatons

Envelop Dual Axis Worm Gear Slew Drive With 12vdc Electrical Motor , Long Life

Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
