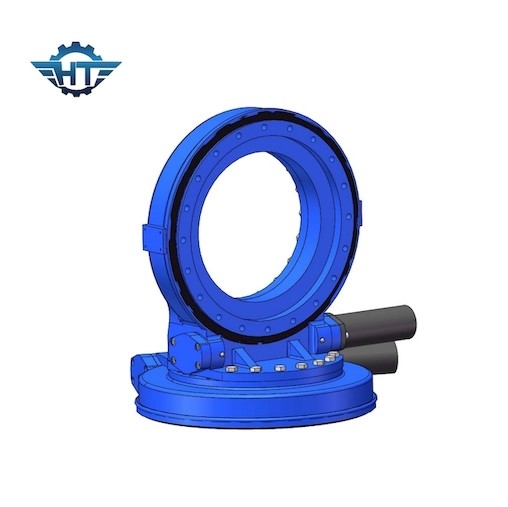

Satellite Antenna Slewing Ring Drive 65mm

Brand Name : HT

Model Number : SDE3"

Certification : CE, ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD 280~330/ pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000 pcs per month

Delivery Time : 15~45 days

Packaging Details : plywood box

Speed : 0~1 rpm

Application : Satellite Antenna

Motor : Electric Motor, stepper motor

IP Class : IP66

Mounting Bolts : 6*M10

Mounting Specification : 80mm

Centre Hole : 65mm

Ratio : 31:1

Contact Now

Dual Axis 3 Inches Slewing Drive With 24VDC Planetary Motor For Satellite Antenna

Product Description

The worm slewing drive of Hangtuo Machinery has an ultra-compact slewing drive unit with extremely high power density. This design is particularly suitable for transmitting extremely high forces and torques in limited installation spaces. Worm drives are used in steering gears for cranes and heavy vehicle transmissions, as well as construction, forestry and agricultural machinery. For these specific applications, we are continually refining our products to maximize torque transfer and minimize maintenance costs.

SDE Model Slewing Drive Performance Parameters

SDE Model Performance Parameters
Model	Rated Output Torque (N.m)	Tilting Torque (kN.m)	Holding Torque (kN.m)	Axial Load (kN)	Radial Load (kN)	Ratio	Efficiency	Precision (degree)	IP	Working Tep (℃)	Self-locking	Weight (kg)
3"	600	1.5	5.8	10	15	31:1	40%	≤0.15	66	-40～+80	Yes	25kg
5"	800	6	9.2	16	27	37:1	40%	≤0.15	66	-40～+80	Yes	34kg
7"	2000	7.5	13.2	34	58	57:1	40%	≤0.15	66	-40～+80	Yes	56kg
9"	4300	16	27.2	60	130	61:1	40%	≤0.15	66	-40～+80	Yes	92kg
12"	5800	25	41	77	190	78:1	40%	≤0.15	66	-40～+80	Yes	160kg
14"	6750	48	45	110	230	85:1	40%	≤0.15	66	-40～+80	Yes	224kg
17"	9460	67	54	142	390	102:1	40%	≤0.15	66	-40～+80	Yes	320kg
21"	16000	89	65	337	640	125:1	40%	≤0.15	66	-40～+80	Yes	492kg
25"	21450	112	89	476	950	150:1	40%	≤0.15	66	-40～+80	Yes	705kg

Applications

The traditional satellite antenna base is fixed, and some highly excited satellites need a satellite antenna swivel base that can rotate in time to drive the satellite antenna to rotate to maintain continuous reception of satellite signals. By installing the slewing drive on the base, the base can become a rotating antenna base, and our slewing drive can also be equipped with a speed-adjustable motor, which allows the system to arbitrarily adjust the rotation speed within the speed range, which is beneficial to the signal catch.
